Handheld Stroboscope

Handheld Stroboscope

Handheld Stroboscope

The Nova‐Pro™ Handheld Stroboscope line is a series  of powerful portable visual  inspection and speed measurement tools. We have combined  all  the  features  of  our  hand  held  LED  stroboscopes together with a full function laser tachometer  to  create  a  compact,  ergonomic  and  extremely powerful two in one predictive maintenance  tool.   The  stroboscope  light  source  is  made up of twelve LED’s which are extraordinarily bright yet extremely efficient allowing cool continuous operation  and  extremely  long  battery  life  (up  to  19  hours on a single charge). Continuous operation is also possible with the optional AC adapter.

.

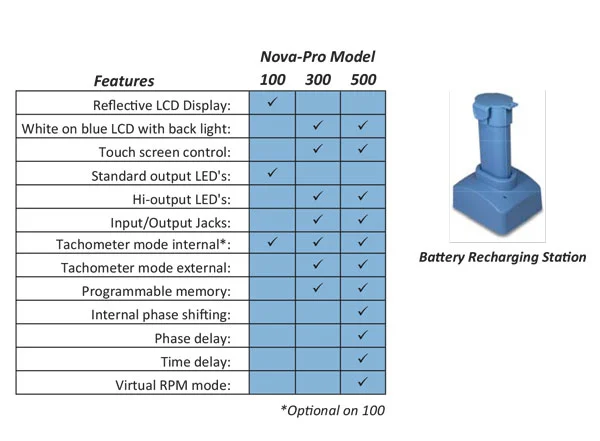

Nova‐Pro 100 Handheld Stroboscope: Designed for simple stroboscopic stop motion  inspection  and  RPM  measurement  applications. The integral laser module is an optional item  that  can  be  added  to  make  the  100  a  full  featured non‐contact tachometer.
Nova‐Pro  300:  Has  all  the  features  of  the  100.  It  includes the integral laser module for tachometer mode or strobe trigger mode and adds a high contrast inverse  blue  LCD  display  with  backlight  and  touch  sensitve number pad (for setting flash rates quickly), ultra  high  intensity  LED’s  for  even  more  light  output,  memory for up to 10 preset flash rates, input and output  jacks  for  external  sensors  or  pulse  repeater  output and NIST calibration certificate.

Nova‐Pro  300 Handheld Stroboscope:  Has  all  the  features  of  the  100.  It  includes the integral laser module for tachometer mode or strobe trigger mode and adds a high contrast inverse  blue  LCD  display  with  backlight  and  touch  sensitive number pad (for settng flash rates quickly), ultra  high  intensity  LED’s  for  even  more  light  output,  memory for up to 10 preset flash rates, input and output  jacks  for  external  sensors  or  pulse  repeater  output and NIST calibration certificate.

Handheld Stroboscope
Handheld Stroboscope

Nova‐Pro 500 Handheld Stroboscope: Has  all  the  features  of  the  300  and  adds an additional standard battery pack, remote laser docking station, phase delay, time delay, virtual slow motion and deluxe rugged, water tight case.

Hand-Held Stroboscope NovaPro
Hand-Held Stroboascope NovaPro
Stroboscope
Stroboscope Hand-Held

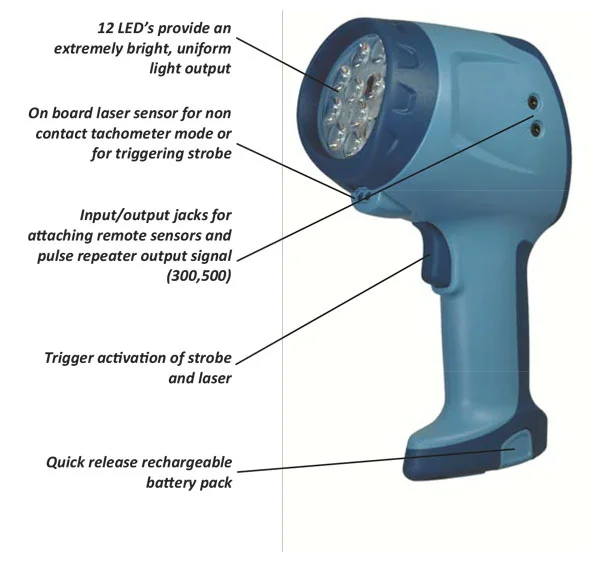

Handheld Stroboscope Features

  • Stroboscope and Techometer in one tool
  • Super bright LEDs
  • Integral/removable laser module
  • Water amd dist resostamt IP54 enclosure
  • 1/4″ x 20″ tripod mount
  • Ergonomic one handed operation
  • Removable rechargeable Li-ion battery

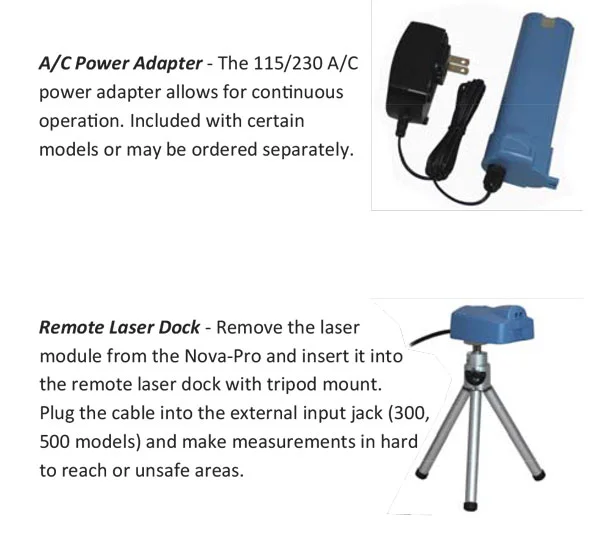

  • Continuous AC operation available
  • TTL compatible input/output (300, 500)
  • NIST certificate included (300, 500)
Typical Handheld Stroboscope Uses

  • Visual running inspections of: Printing Processes, Fan blades, motors, shafts, gears, rollers, webs, belts, sheaves, chains, sprockets and muchmore without having to shut down your process
  • Diagnose alignment issues
  • Determine speed of rotating equipment using strobe or built in laser tachometer
  • Troubleshoot high speed automation processes by placing them in virtual slow motion
  • Print quality inspection
  • Textile processing inspection
  • Phase reference for balancing
Unique Features of Handheld Stroboscope Uses



The Nova-Pro represents over 35 years of expertise in manufacturing rugged, reliable, portable test and measurement instruments.  This revolutionary product combines the feature sets of our portable stroboscopes and tachometers into one incredibly powerful ergonomic tool.

  • Visual running inspections of: Printing Processes, Fan blades, motors, shafts, gears, rollers, webs, belts, sheaves, chains, sprockets and muchmore without having to shut down your process
  • Diagnose alignment issues
  • Determine speed of rotating equipment using strobe or built in laser tachometer
  • Troubleshoot high speed automation processes by placing them in virtual slow motion
  • Print quality inspection
  • Textile processing inspection
  • Phase reference for balancing
