Focus Label Machinery LTD - Label Printing Machines Since 1981
Focus Label, where we design, manufacture & install all types of label printing machines – from inline label printing machines, heat transfer printing machines, silk screen printing machines, to rewinding machines. Whatever you need, we can provide.

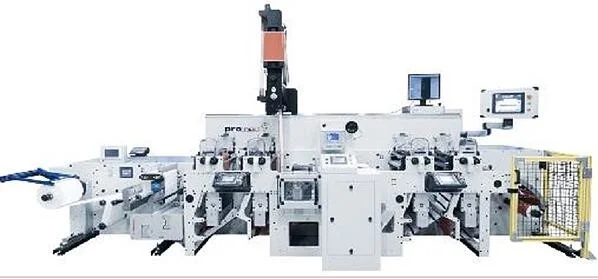

HM300 FLX New from Focus
The Flexo’ units can be used for printing and the application of a wide variety of UV curable release coatings. The machine utilises the latest Rhino GEW UV system, Double sided Vetaphone corona treater and Proact web cleaner.
The coating module incorporates Valco Melton coating equipment, now standard issue on the full range of Elite Cameron Hot Melt Coaters. The head accurately applies stripes or full width, streak free coating of HM adhesives. The coat weight is monitored and displayed continuously on an NDC measurement system.
This totally integrated solution is controlled using a Schneider PLC, with servo drives for perfect registration and tension control throughout.
Focus Label Machinery DFLEX
Small Volume orders, variable data & Images can be easily handled with this digital label printing machine; the dFlex Ink jet system. 4 Colours plus white are possible with current production speeds of 20-70 Mts/min.
Ink Jet technology combined with a flexo print station and full options labels can now be printed, coated & converted in line with no fuss at the press of a button.
- High Speed Digital Ink Jet, 4 Colour Plus White option
- Single colour Rotary flexo for printing & over varnish or coating
- Servo Technology
- Choice of web widths
- UV Drying systems
- Roll to Roll , Roll to Sheet converting
- Applications: Labels, Security Labels , Packaging, Tickets.
Focus Label Machinery DPACK
Focus presents its latest ’dPack’ digital press for small volume orders, variable data & images can be easily handled with this digital printing line. The dPack Ink jet system provides production speeds of 20-120 Mts/min.
Fast turnaround of printed Papers, film & packaging substrates with high speed Ink Jet technology with no fuss at the press of a button.
- Advanced RIP & Graphic Software options from GIS & COLOURGATE
- High Speed Digital Ink Jet, 4 Colour Plus White option, CMYK, Mono
- Single or Twin print head modules
- Roll to Roll Servo Technology
- Choice of web widths from 330mm
- UV & LED Drying system options
- Applications: Printed Papers, Films, Shrink Sleeves, Promotional Prints, Label Stock, Security Labels, Packaging, Tickets
Reflex Machine & Digital Finishing Equipment
For Digital finishing applications the Reflex range of servo equipment hits the mark every time with perfect print to cut registration. This is a high speed full rotary system which provides perfect re-registration facilities, plus the benefit to be used as an independent production machine. Spot Colours, Coating, Cold Foil, Laminating, Die cutting make the Reflex a perfect match for finishing any Digital Printed applications.
- Digital Re-register of Pre-Printed webs at High Speed
- Servo Technology
- Choice of web widths
- Combination IR & UV Drying systems
- Roll to Roll , Roll to Sheet converting
- Single Colour Printing & Coating
- Applications: Labels, Security Labels , Finishing, Coating , Films, Packaging, Tickets
d-TEX DIGITAL PRINTING SYSTEMS
The new d-Tex concept is the first equipment designed specifically for this application. The d-Tex is a practical industrial production level machine and an effective method of producing short run digitally printed garment & apparel labels based on proven technology developed over several years by Focus Label in our packaging & paper division.
The launch of the Focus d-Tex concept equipment coincides with emerging Inkjet single pass print technology which will deliver quality & industrial performance suitable all label manufacturers who want to capitalize on fast changing market habits for shorter runs, high quality and variable data applications.
10 labels or 100,000 labels, the d-Tex delivers effectively with a digital print solution, combining an entry level 2 colour (MK) or full colour (CMYK) inkjet system.
Typical running speeds of up to 30-60 mts/min are achievable with high end software that will handle small orders, variable data and high resolution graphics.
Focus Label Proflex SE
The latest Proflex range of modular printing press equipment are available with Servo drive technology (Se version) or line shaft (e Version). The new drop in Cylinders ensure fast set up and consistent quality throughout the press speed. We have a wide range of options for specialised production applications from unsupported films through to small cartons.
Combination drying systems for labels, tickets & board, with IR, UV, led UV including chill rolls for unsupported films make the Proflex range the right choice for narrow web printing at a sensible investment level.
- Modular 2 to 10 colours construction, Servo or Line shaft option
- Choice of web widths
- Combination IR, UV & led UV Drying systems with Chill Rolls
- Roll to Roll, Roll to Sheet converting
- Quick load Tooling for fast set ups & high quality Printing
- Applications: Labels, Security Labels, Films, Packaging, Tickets, Cartons
Focus Label e-Flex
The e-Flex Platform provides a common base system for a new family of new Servo technology presses starting from the 330mm wide e-Flex 330-1. All machines will carry twin servo drives for full independent control of the substrate & printed image. You are able to choose a variety of options for specific applications. The focus will be on rapid set ups, reducing waste and enhanced operator system control as well as reduced energy & running costs.
The main features of the e-Flex machine include:
- Twin Servo Technology
- One touch set up & pre- register
- Modular platform & Rail system for options
- Choice of web widths
- Combination Drying systems
- Roll to Roll, Roll to Sheet converting
- Applications: Labels, Security Labels, Films, Packaging, Tickets, Cartons
Inspection Rewind System
The new d-Tex concept is the first equipment designed specifically for this application. The d-Tex is a practical industrial production level machine and an effective method of producing short run digitally printed garment & apparel labels based on proven technology developed over several years by Focus Label in our packaging & paper division.
The launch of the Focus d-Tex concept equipment coincides with emerging Inkjet single pass print technology which will deliver quality & industrial performance suitable all label manufacturers who want to capitalize on fast changing market habits for shorter runs, high quality and variable data applications.
10 labels or 100,000 labels, the d-Tex delivers effectively with a digital print solution, combining an entry level 2 colour (MK) or full colour (CMYK) inkjet system.
Typical running speeds of up to 30-60 mts/min are achievable with high end software that will handle small orders, variable data and high resolution graphics.
Lx Letterflex Machine Set Up
Lx Letterflex Printing Plate Mounting
Lx Letterflex Tape Mounting
